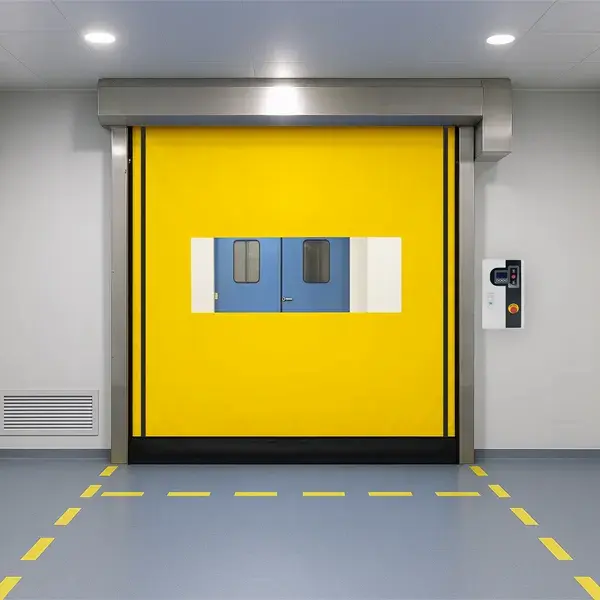

Zipper Self Repair Rapid Door

Zipper type self repair rapid door is quite fit for food and drug factory, clean room and dust-free workshop, It fit for the area where have very strict requirement of the hygienic and cleanness indoor requirement.
Availability:
Quantity:
  • YUOU-Zipper

Technical Data

Max dimension: 5000mm wide*5000mm high
Max opening Speed: 2.5m/s
Max closing speed: 1.0m/s
Wind resistance: Beaufort scale 8 (25m/s)
Power supply: 1-phase 220±10%V,50/60HZ,
Protection level of electric: IP55
Control system: Servo type
Driving system: Servo motor
Available colors of fabric: Yellow, Blue, Red, Grey, White

1.Excellent airtightness:

Special zipper design structure, connects the fabric and guide rails as a whole body, eliminating gap between them. It obviously improves overall seal performance and air tightness.

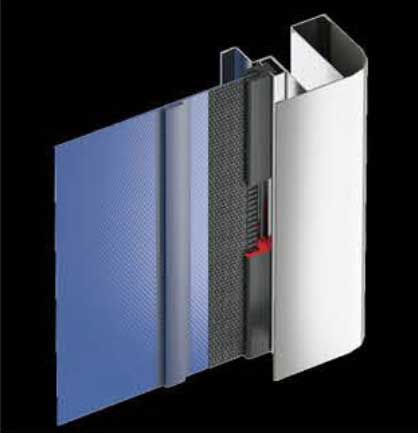

zipper seal construction

2.Self reparing:

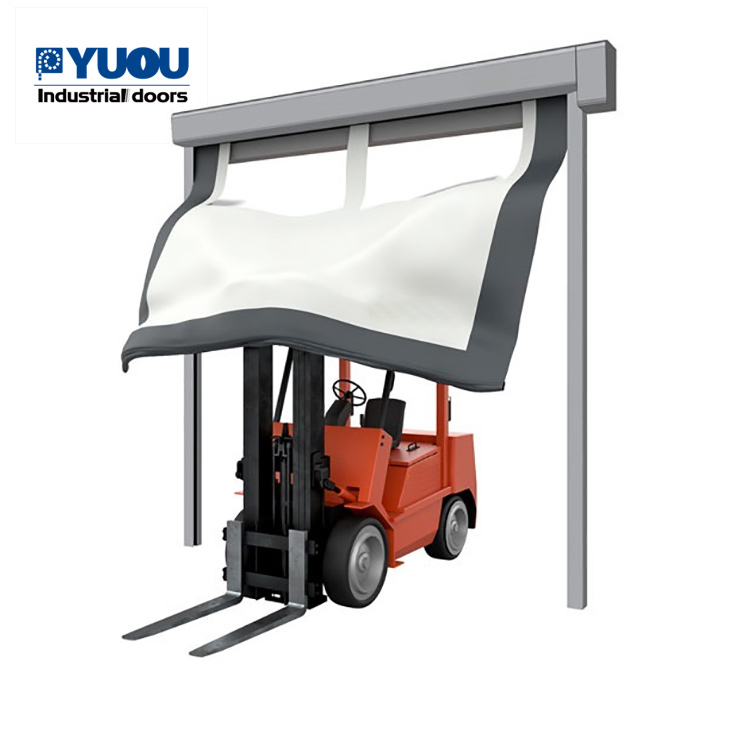

When there is a collision accident by forklift or other objects, the door will not be damaged. And it can recover automatically or semi-automatically under hand assistance. This design effectively reduces the maintenance and repair work caused by collisions.

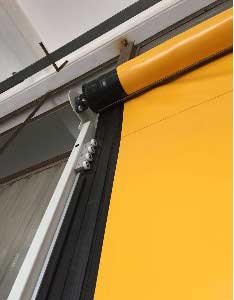

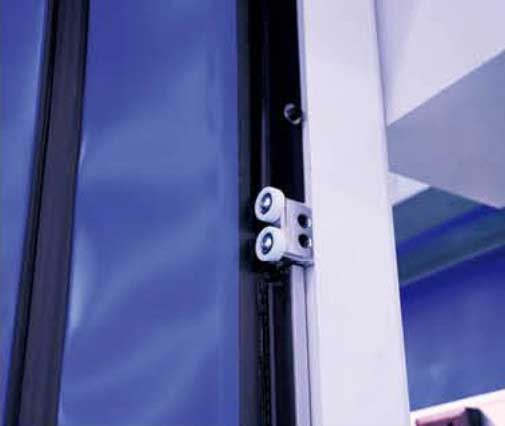

Automatic reduction structure          Automatic reduction structure

3.Soft bottom edage:

A flexible torsion spring or rubber is adopted as bottom balance weight, instead of hard aluminum alloy profile of regular rapid doors.

Soft bottom edage
