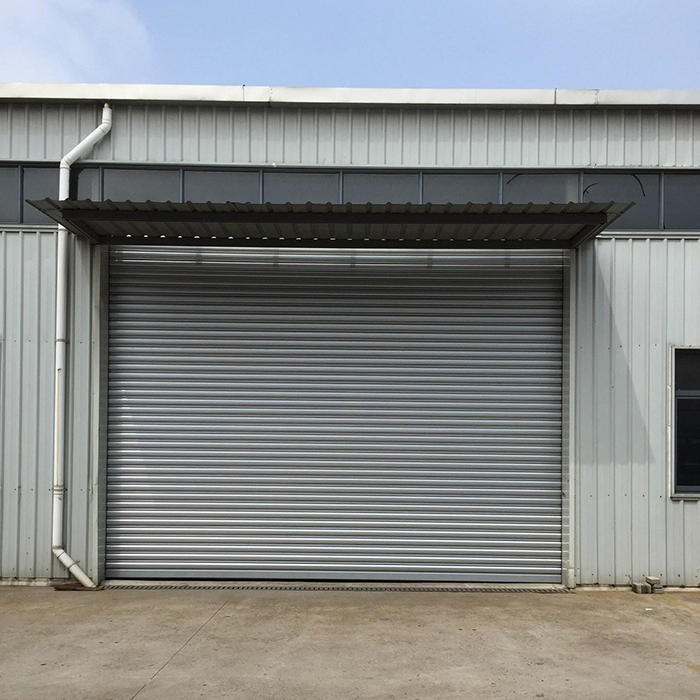

Steel Wind Resistant Roller Shutter Door

The wind-resistant rolling shutter door can resist high wind pressure .Widely installed in logistics centers, storage, factory gates and other places where high strength and wind resistance are required.
Quantity:
  • YUOU-Steel roller shutter
  • YUOU
Max dimension W12m*H12m
Wind resistence 8 level-11level(24.5m/s-32.6m/s)
Opening and closing speed 5-12m/min
Power supply 1 phase220±10%V,50/60HZ OR 3 phase380V±10%V,50/60HZ
Color Stadard:white, other size can be customized
Installation method Middle, exterior, interior

Sturcture diagram: easy to maintain, installed above the door hole, save space, ☆ economical and durable.

roller shutter diagram

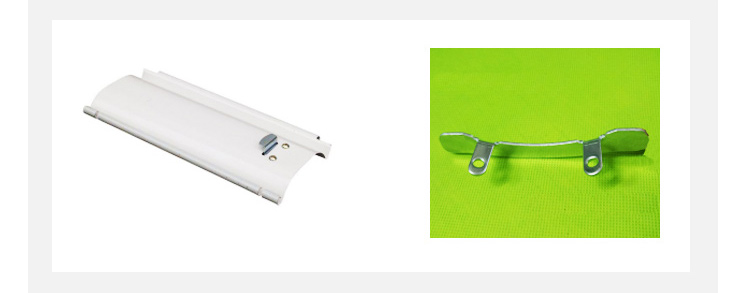

1.Anti-wind shutter slats:thickness 0.8mm-1.5mm,color can be customized,big size with wind lock.

wind-roller-shutter-slats

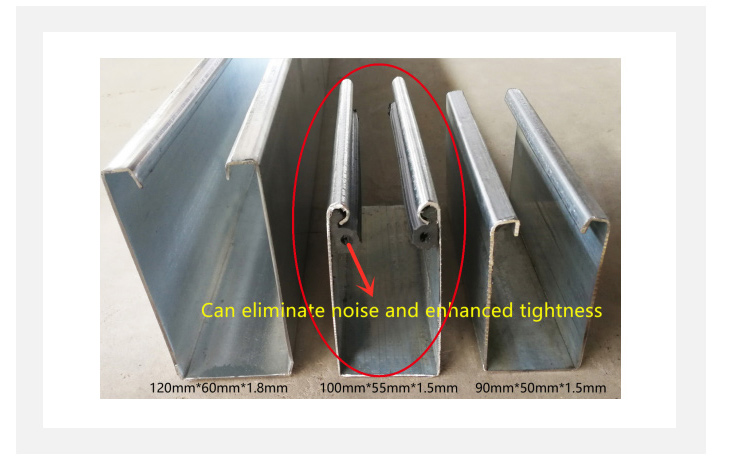

2.Guid rail:The track is made of stainless steel 90mm*50mm*1.5mm thickness track with seals.

roller shutter rail

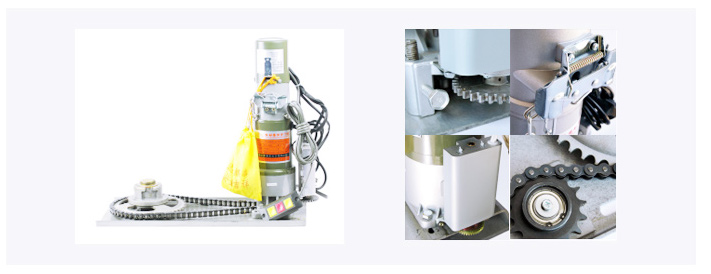

3.Motor:The motor is preferred to use the domestic first-line brand Anlin motor. (The door hole is less than 3m and the tubular motor can be used)

roller shutter motor

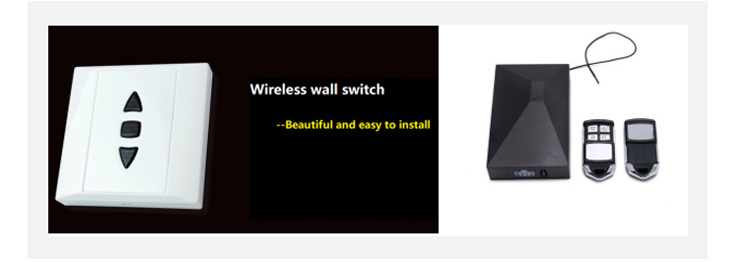

4.Button and remote:

Aluminum-roller-shutter-button and remote

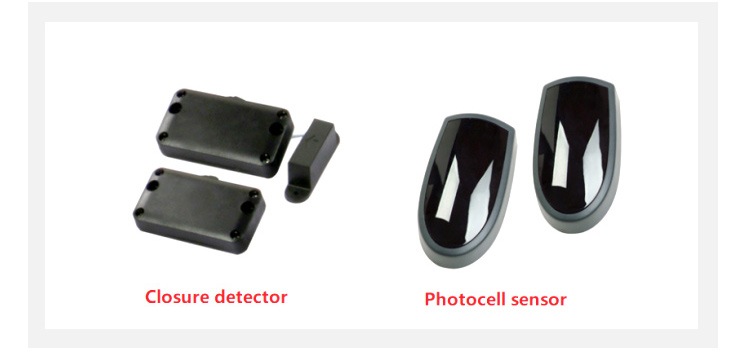

5.Safety devices:

Aluminum-roller-shutter-detector

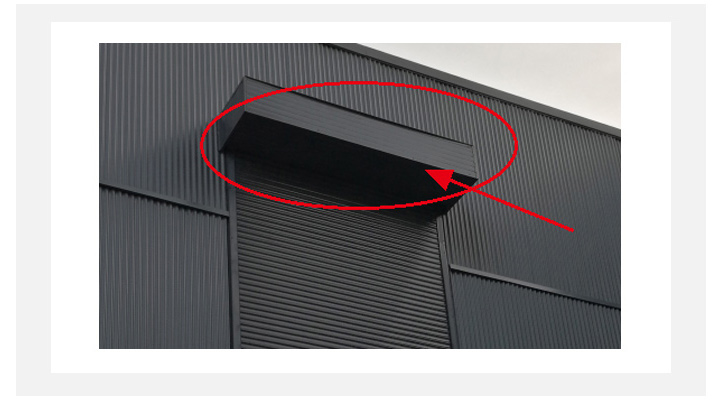

6.Hood cover box:1.0mm powder coated galvanized steel.

hood cover box
