Stacking Rapid Door

Stacking rapid door fit for big door opening size (more than 6m*6m)and also have the requirement of the door opening and close speed. This door have great wind resistence.
Quantity:
  • YUOU-Stacking
  • YUOU

Technical data:

Max dimension: wide*high≤13000mm*8000mm
Max opening Speed: 1.0m/s
Max closing speed: 0.7m/s
Wind resistance: Beaufort scale 12 (35m/s)
Power supply: 1-phase 220±10%V,50/60HZ,or3-phase 380V±10%V,50/60HZ
Protection level of electric: IP55
Available colors of fabric: Yellow, Blue, Red, Grey, White

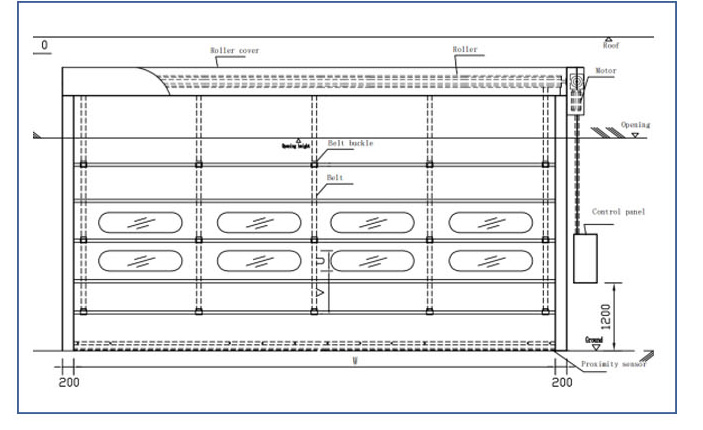

Structure diagram:

stacking rapid door diagram


1.PVC fabric:PVC environmentally friendly material, safe, durable, with multiple colors to choose,Standard thickness:1.0mm(950g/sqm).Other thickness available:1.2mm-1.5mm;Flameresistant material.

Normal-3

2.Frame and Rails:Including two guide rails,one top cover box and motor cover.Galvanized steel or stainless steel.Thiickness:1.5mm guide rail;1.0mm cover box.

Normal-4

3. Motor and controller:Italy servo technology motor and controller with English interface.Absolute encoder+inbuilt incremental encoder,double encoder ensure low failure rate.

Normal-5

4. Safety devices:

A.Photocell sensor:When there is a human or vehicle under the door,the door will stop closing and get up automatically.This will avoid accident collisions.

Normal-7

B.Safety bottom edge:When the bottom bar of the door touches something,it will stop closing immediately and get up automatically.

Normal-8

C.Alarm light and enmergency buttons.

Normal-9

5. Operation methods:

Normal-10

6. Commonly used colors:(Other color can be customized.)

Normal-6
