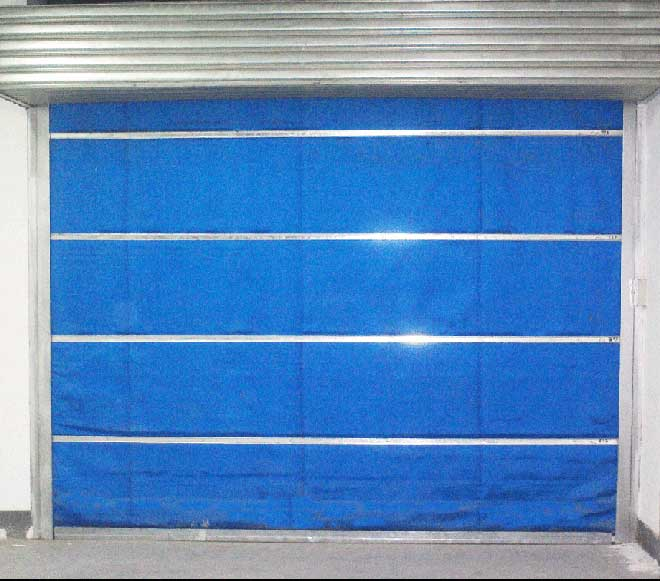

Inorganic Fabric Fire Shutter Door

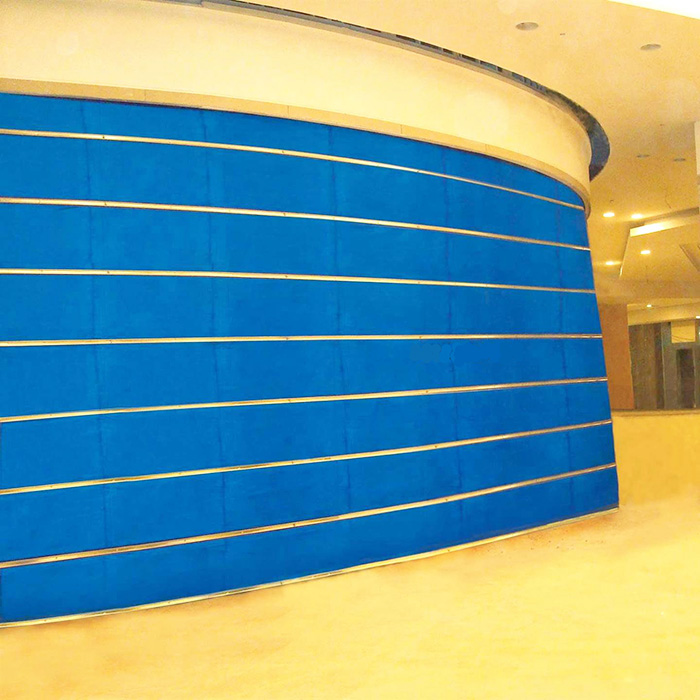

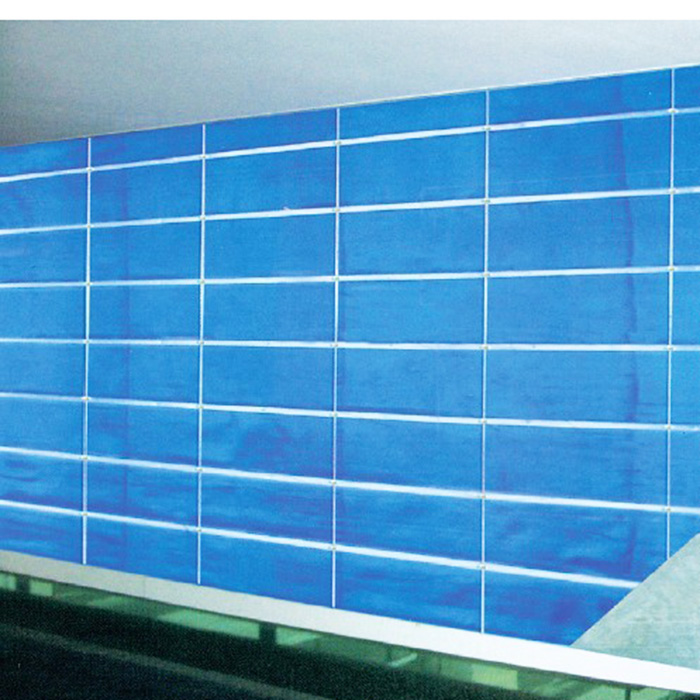

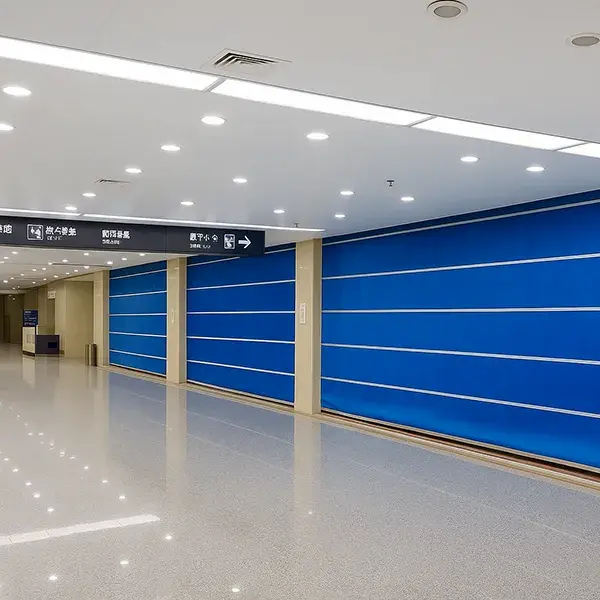

Inorganic fabric fire shutter door's fire limit is greater than 3h.Widely used in shopping malls, hotels, office buildings, underground garages and other public places divided into fire zones.It has better protection against fire, smoke and heat.

Quantity:

Technical Data:

Fire resistance  ≥3h
Power A380V 50HZ ,control power DC24V
Wind pressure 490-1177 Pa(14m/s)
Unexposed surface temperature ≤154℃
Weight 3.5kg/sqm
runing speed 6m/min-10m/min
Curtain Smoke leakage ≤0.12m³/(sqm/min)
Motor Power 0.25KW-1.5KW Power: AC380V, 50HZ
Open way Electric/manual chain
Maximum size 12m*12m
Certification Chinese CCC

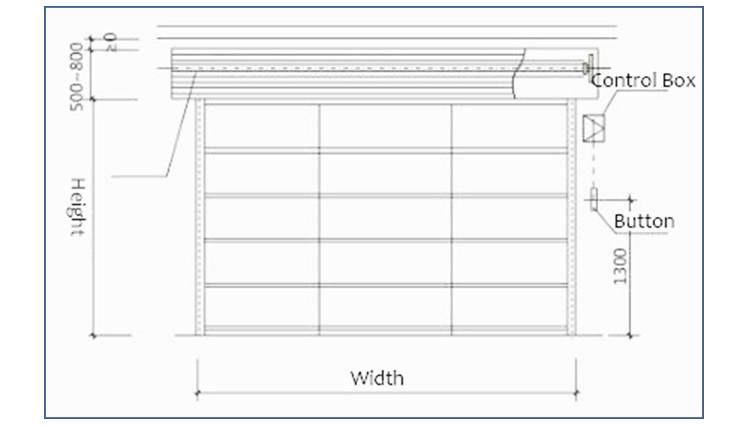

Structural diagram:It use the special fire motor,and the control box connect to the fire protection system of the building.Special production materials make it fire and smoke prevention.

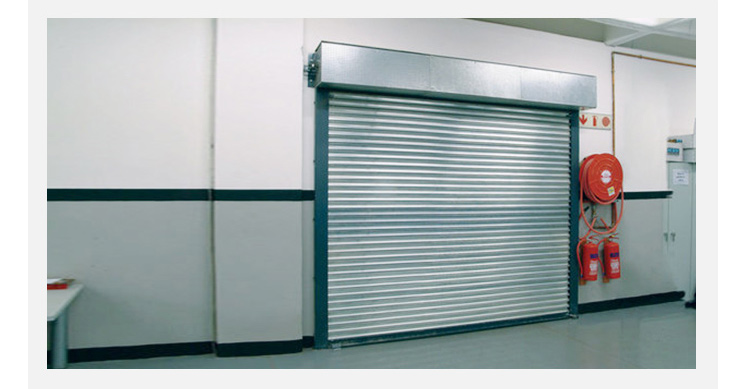

fire roller shutter diagram

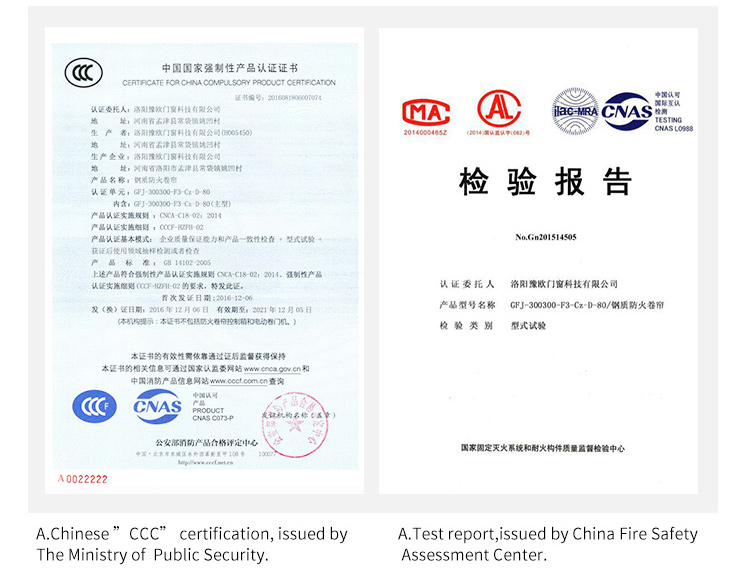

Certificate: The fire shutter door is authorized by the National Fire Protection Center. It is manufactured according to the national standard GB14102-2005.

Febric Fire Shutter Door Certification Febric Fire Shutter Door Certification

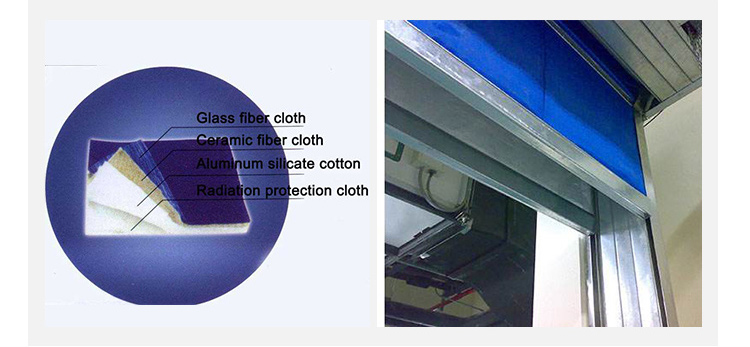

1.Door curtain: The curtain is made of four layers of fireproof material, which are glass fiber cloth, aluminum silicate cotton, ceramic fiber cloth and radiation protection cloth.

Inorganic Fabric Fire Shutter Door Curtain         Inorganic Fabric Fire Shutter Door Curtain

2.Hook and curtain bead:

Inorganic Fabric Fire Shutter Door Hook and curtain bead

3.Guid rail:The track adopts a 1.5mm thick galvanized steel rail, and the rail is internally provided with a smoke-proof sealing strip, which is heated and expanded to isolate smoke and heat.

fire roller shutter door rail Steel Fire Shutter Door Rail

4.Scroll shaft:The reel is 2.5mm thick, φ140mm galvanized steel pipe, and the measured deflection is 1/3891.

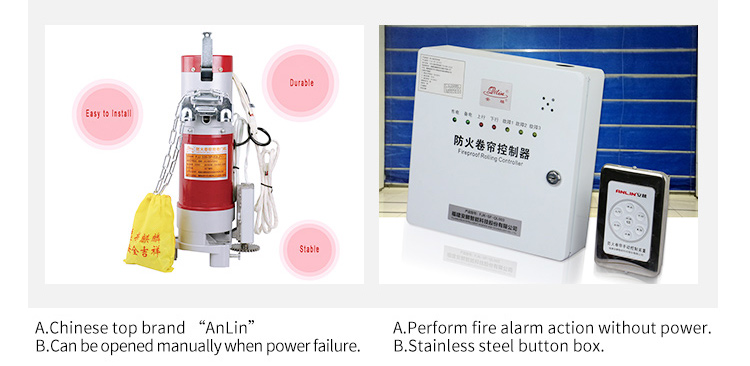

5.Motor:The motor and controller are fireproof and have CCCF certification issued by China National Fire Protection Center. It can be linked with a fire sensor or a fire bus.

Inorganic Fabric Fire Shutter Door Motor   inorganic fabric fire proof roller shutter control box  Inorganic Fabric Fire Shutter Door Control bracket
