Industrial Sliding Door

Industrial sliding doors,double or multiple leafs. Sliding doors are available in a variety of forms, sizes, and door panels. It can be applied to small holes and can be applied to special openings with super wide and super high. Therefore, the application range is relatively wide, such as small workshops, warehouses, personnel passages, etc., to the fields of aviation, ships, industrial enterprises, ports, large scientific research bases and so on.

Quantity:

Technical Data:

Max dimension unlimited,Suitable for large doors
Power supply 220V,50/60HZ或380V,50/60HZ
Wind-resistence 10-12 class gate(24-38m/s)
color Standard,white  blue can be customized
Installation methods Exterior, interior

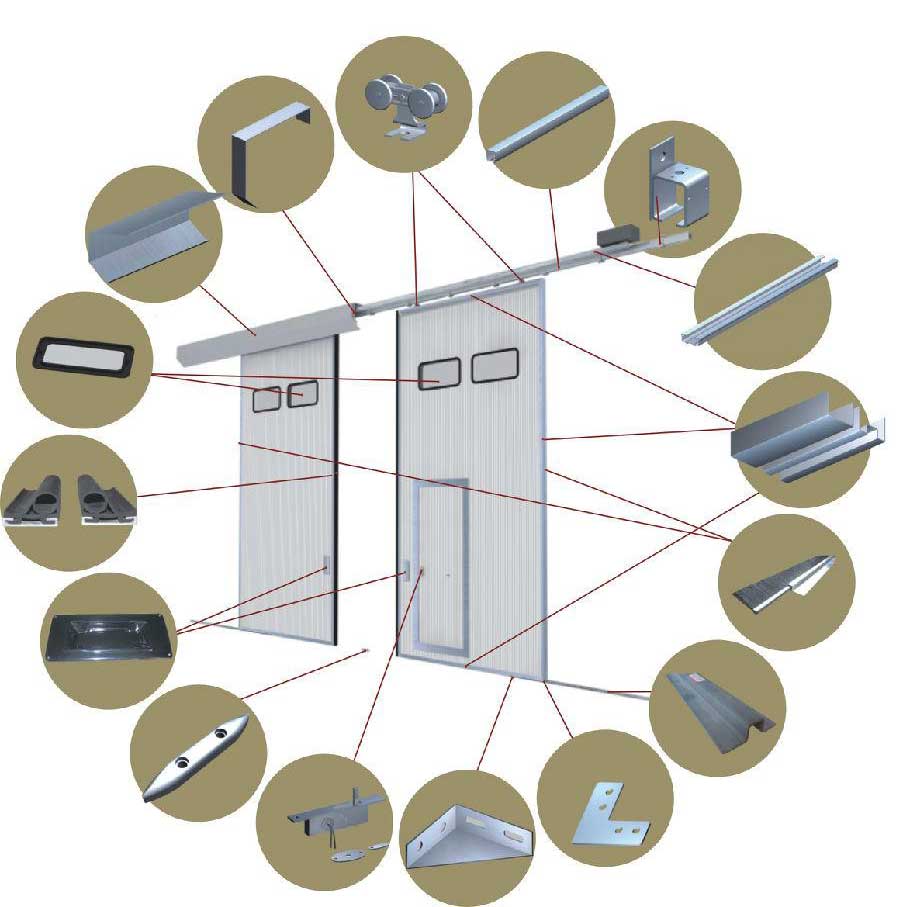

1.The main structure of the door:The sliding door can be manually opened or by electric motor. The structure of the door is simple, the opening direction, the number of door fans is flexible, and the small door can be conveniently added to facilitate the passage of personnel. Strong wind resistance and durability.

sliding door structure

Attention:

Running track: open and close horizontally to the wall

Applicable to the opening: there are spaces ≥ the width of the door opening on both sides of the door opening

2.The load-bearing method has two methods:

(1)Upper bearing:The upper orbit bears the weight,lower rail to the guiding role,the door frame needs to be very strong;

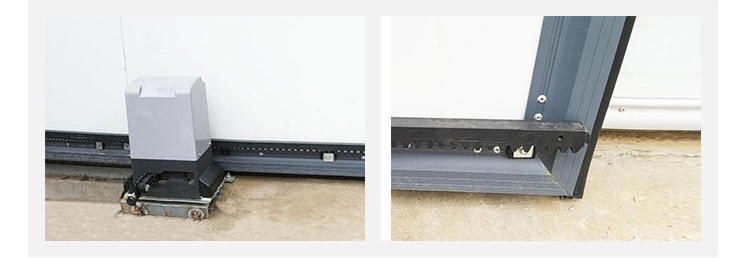

sliding door sliding door motorUpper load-bearing hanging wheel

(2)lower bearing:The lower rail bears the weight, the upper rail guides;

sliding door sliding door motor Under load wheel

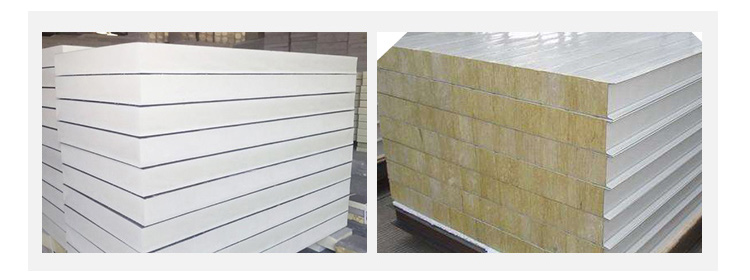

3.Panel material: small door(less than 10m width), steel frame with buckle edge (high sealing) special edging door frame, 50mm, 75mm, 10mm foam door panel, polyurethane foam door panel or rock wool door panel, steel plate thickness 0.5mm, the middle of the door panel according to the specific size Increase the resistance to wind.

sliding door panel material

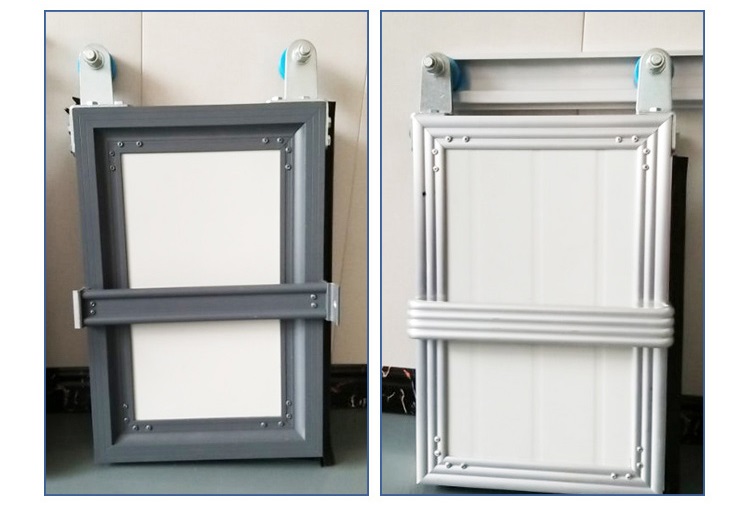

4.Lighting window:Can choose tempered glass, sunlight board, PC endurance board, laminated glass and its transparent materials.

lighting window

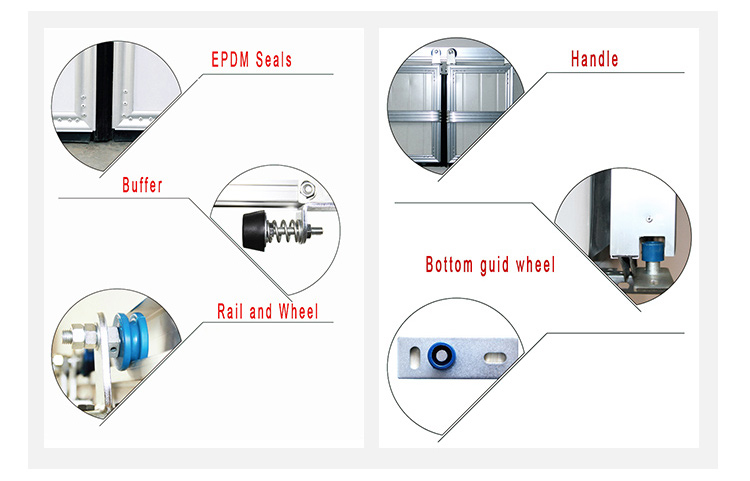

5. hardware accessories:

 sliding door accessories

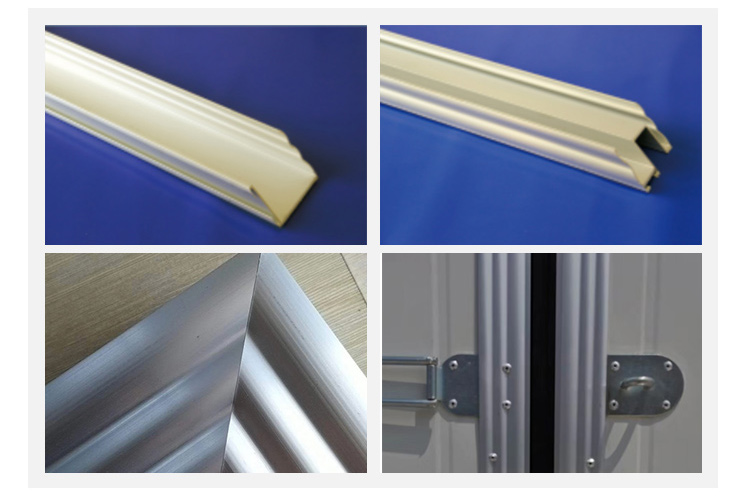

6.Sealing parts:EPDM rubber or brush;

EPDM rubber         brush
