Garage Door

Advantages of sectional over head garage door :
1.Space saver 2.Home securer
3.Uncomforable external environment insulator
4.Safe keeper
Quantity:
  • YUOU-Garage door
  • YUOU

Technical data:

Material Galvanized steel with PU foaming inside
Material Construction Steel-foam-Steel, sandwich panel
Thickness of the steel plate 0.4mm
Thickness of the panel 40mm
Panel length/panel width 2m~12m/500mm
Section Style Finger protection panel
Maximum size Height:6m*Width:8m
Section Surface Finish orange peel, flush
Front-side design with Rectangle/stripes design
Backside design with Stripe/flush design
Accessories Single Track with min headroom for 350mm;Double Track with min headroom for 150mm
Door motor AC220V or 110V; DC Motor; 800-1500N
Opening Way Electrical control and Manual operation
Color White and other colors can be customized

Structure diagram:

garage door installation diagram

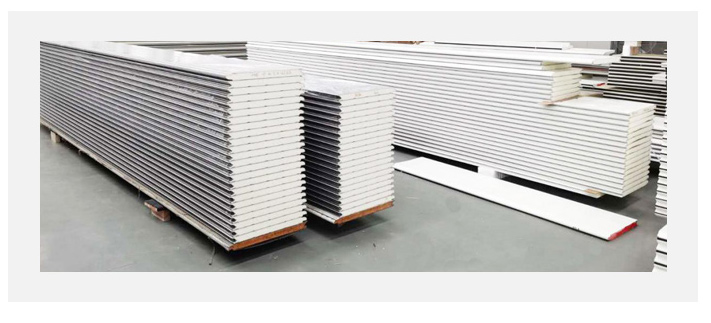

1.Panel:

garage door panel

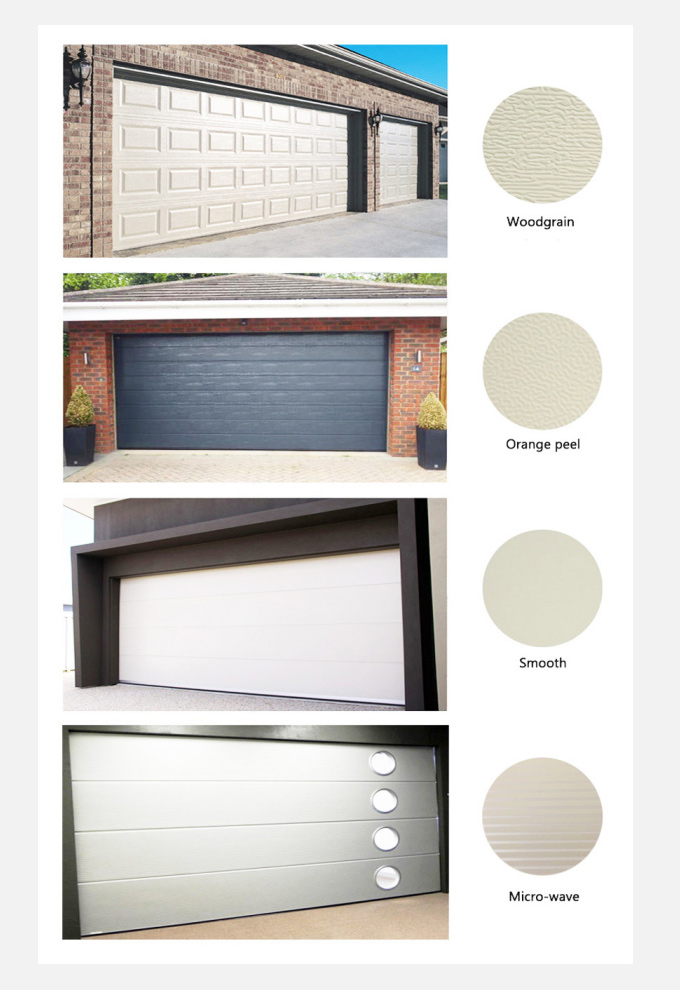

A.Surface grain:

 garage door surface

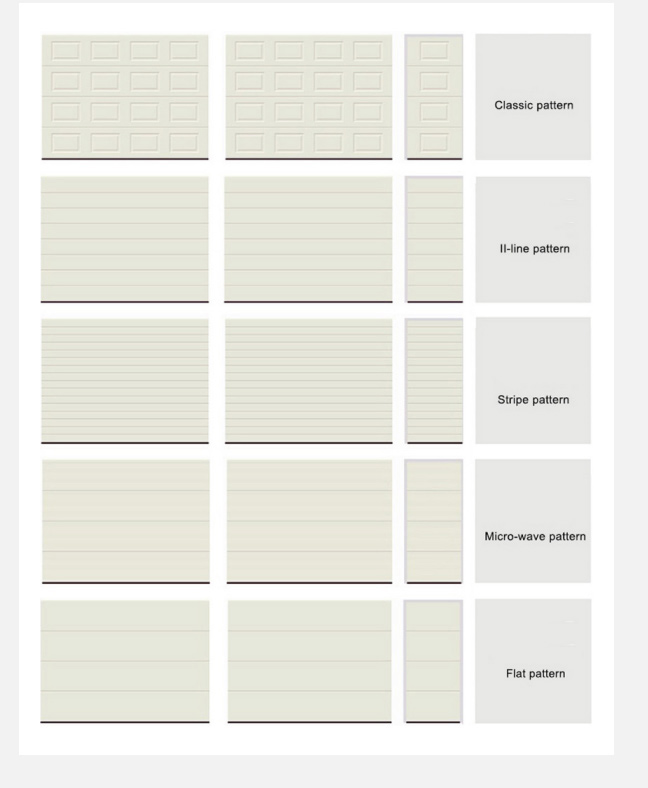

B.Standard surface design:

garage door design

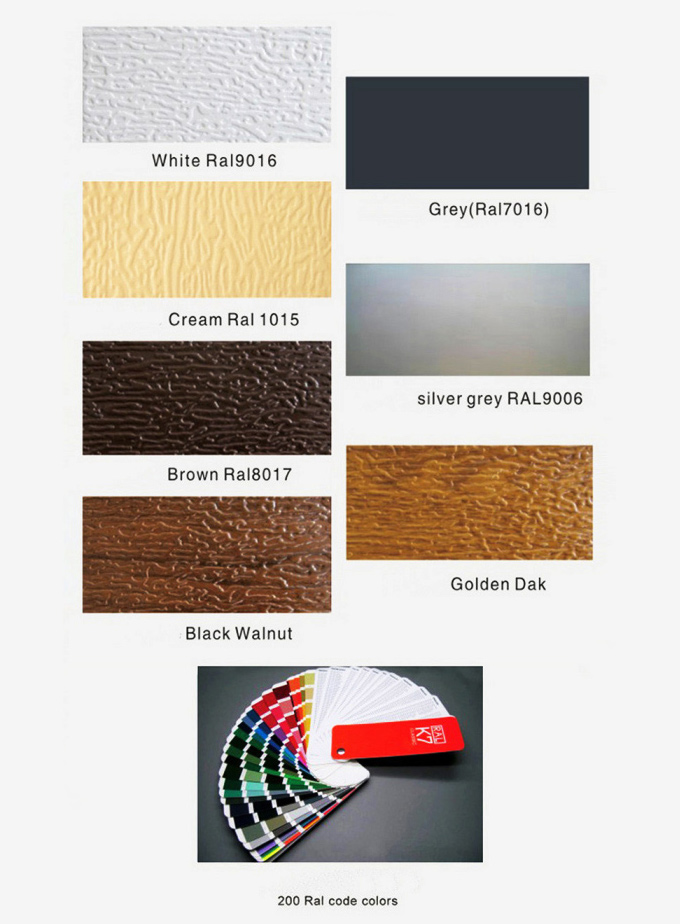

C.Color

garage door color

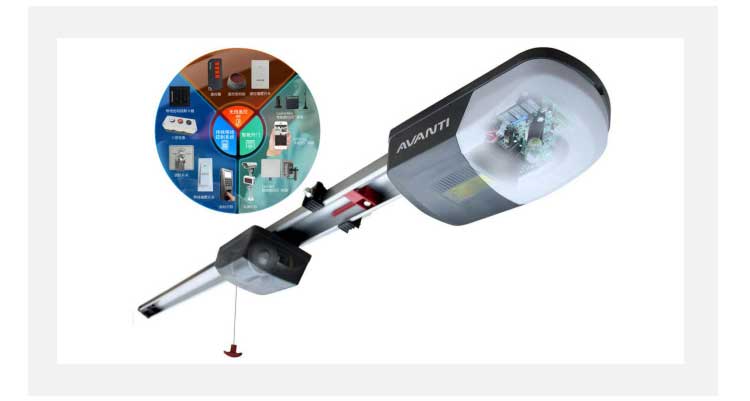

2.Motor:Germany AVANTI Or other brand.

garage door motor

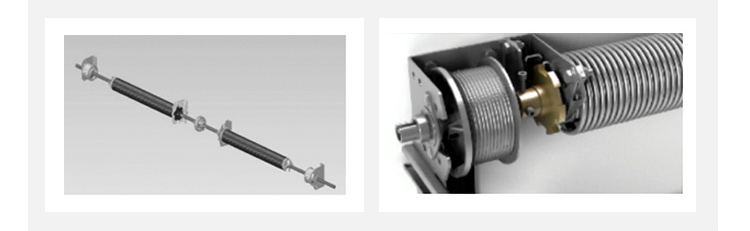

3.Balance spring:Service life - 100 thousand opening and closing.Choosen according to door size,weight and lifting way.

garage door spring

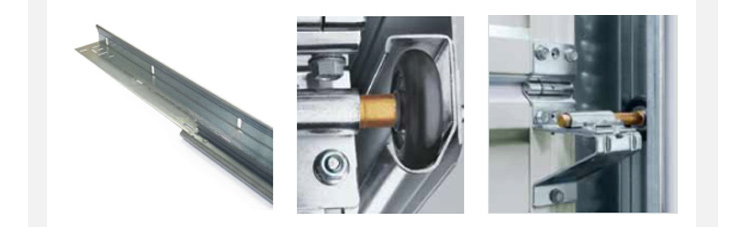

4.Guide rail:Special design three angle wheel brace scure smooth rolling of wheel."Mute Nylon Wheel",noise level≤60db.

garage door rail

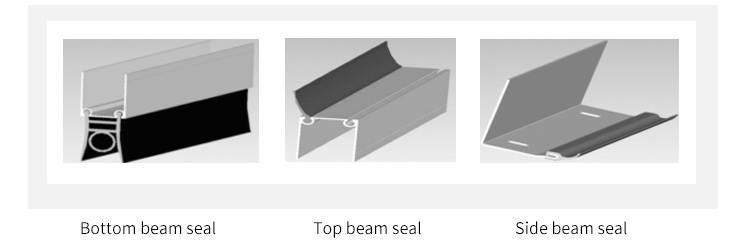

5.Seals:EPDM sealing rubber is installed onto top,bottom and periphery,cold resistant and anti-broken.

garage door seal

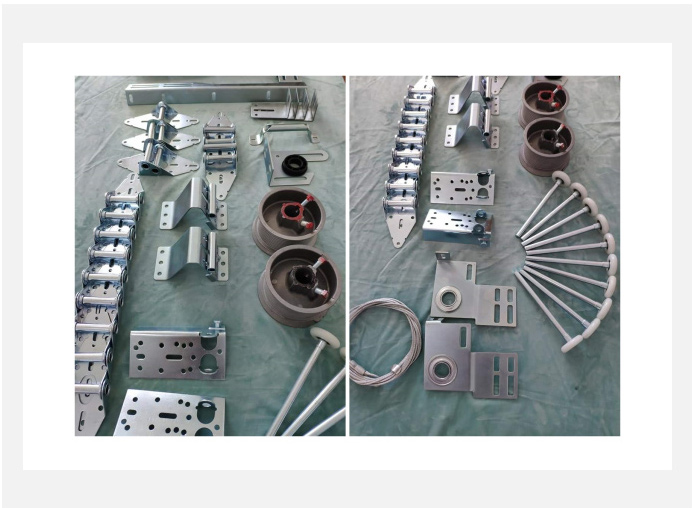

6.Accessories:

garage door accessories

7.Optional:

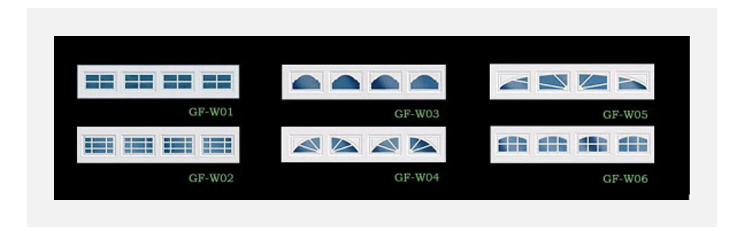

A.Window:

garage door window

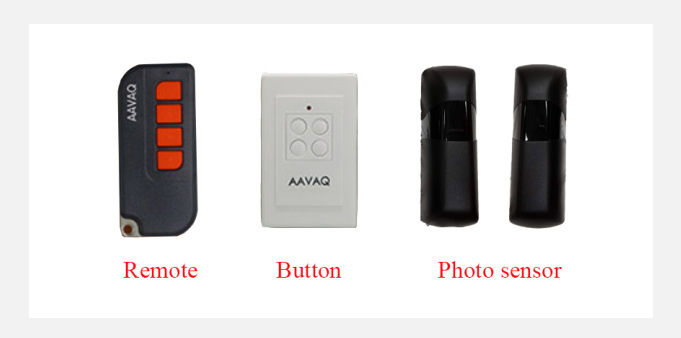

B.Other devices:

garage door devices
