Fabric Mega Door

Fabric mega door is characterized by buildings suitable for small spaces on both sides, and is mainly suitable for large working environments such as hangars, shipbuilding, steel making, mineral processing, large warehouses, and logistics channels.
Quantity:

Technical Data:

Applicable door opening W42m*H17m
Motor Power 3.2KW-13KW
Running speed 0.15m/s
Door thickness 450-800mm
Adapt to temperature -40°C~50°C
Maximum wind pressure resistance of the door 650N/m²
Control box protection level IP54
Control external button protection level IP64
Fabric curtain color Blue,yello,grey,red,white

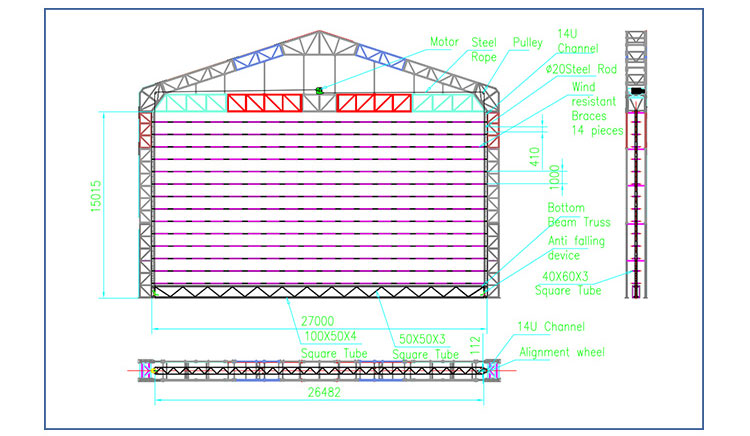

Structure diagram:

Mega door diagram

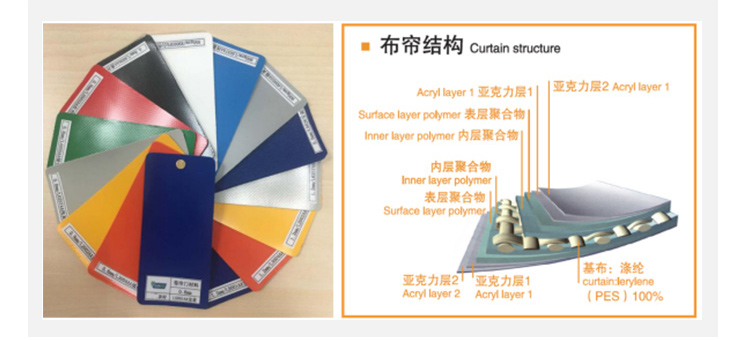

1.Door curtain:PVC fabric,thickness 1.0-1.5mm.Commonly used color:Blue,yewwow,grey,red,white.

mega-door-curtain

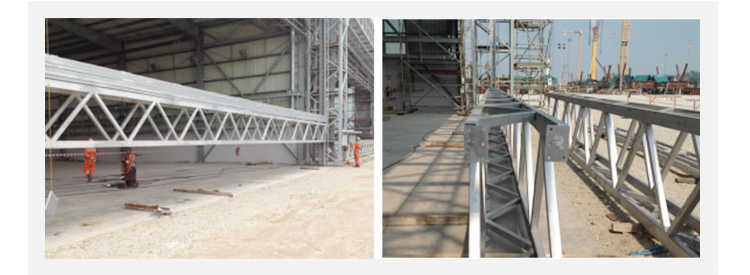

2.Steel structure:"BaoGang" material brand(Top brand in China);Surface process:hot dip galvanized steel tubes.Besides,all the joints are fully welded to ensure the high-strength of structure.

mega-door-frame

3.Motor and controller:Motor loading capacity:2-15t;Running speed 69m/min;Power:5-13KW.Variable frequency control,slow start and stop,other function can be customized.

mega-door-motor

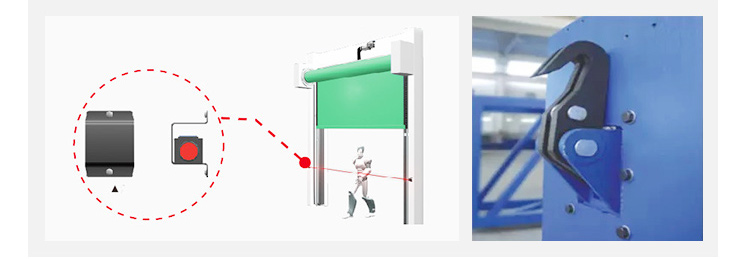

4.Safety device:Photo cell sensor will stop running when someone passing.And accident fall arrester safety system to prevent any accident falls.

mega-door-safety-device

5.Installation on site:

mega-door-installation
