Crystal Roller Shutter Door

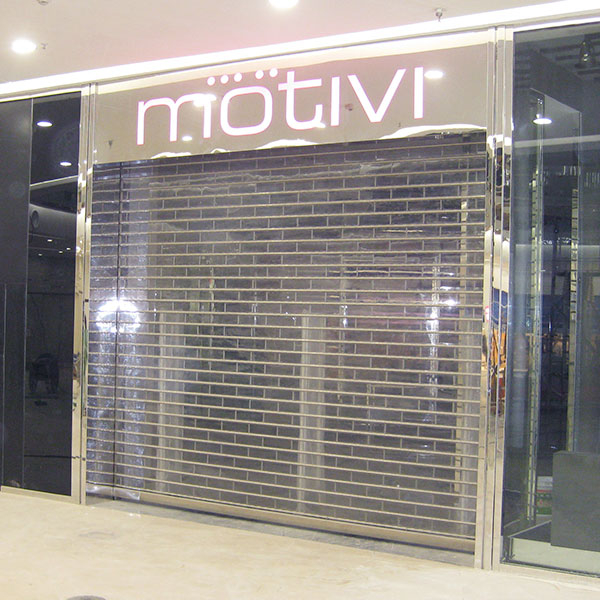

The crystal transparent roller shutter door is still raised to the top of the doorway, and its transparent acrylic sheet material makes it beautiful and high-grade. And widely used in applications with perspective needs, such as shopping malls, facades and so on.

Availability:

Quantity:


Inquire Add to Basket

Product Description

Technical Data:

Max dimension	W8m*H6m
Wind resistence	8 level-11level（24.5m/s-32.6m/s）
Runing speed	5-15m/min
Power supply	Single phase 220±10%V,50/60HZ OR 3 phase380V±10%V,50/60HZ
Color	Stadard：transparent other size can be customized，yellow，blue and red
Installation method	Middle, exterior, interior

Sturcture diagram: easy to maintain, installed above the door hole, save space, ☆ economical and durable.

roller shutter diagram

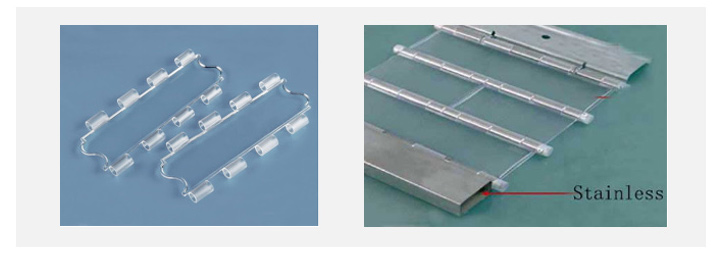

1.Panel:The door panel is made of φ20mm*0.8mm thick stainless steel pipe. A 1.0mm thick galvanized round tube is introduced into the stainless steel tube to strengthen the strength of the door. The stainless steel bottom beam is chosen, which is beautiful and generous.

transparent slats

2.Guid rail:The track is made of stainless steel 90mm50mm1.5mm thickness track with seals.

roller shutter rail

3.Motor:The motor is preferred to use the domestic first-line brand Anlin motor. (The door hole is less than 3m and the tubular motor can be used)

roller shutter motor

4.Button and remote:

5.Safety devices:

Aluminum-roller-shutter-detector

6.Hood cover box:1.0mm powder coated galvanized steel.

hood cover box
