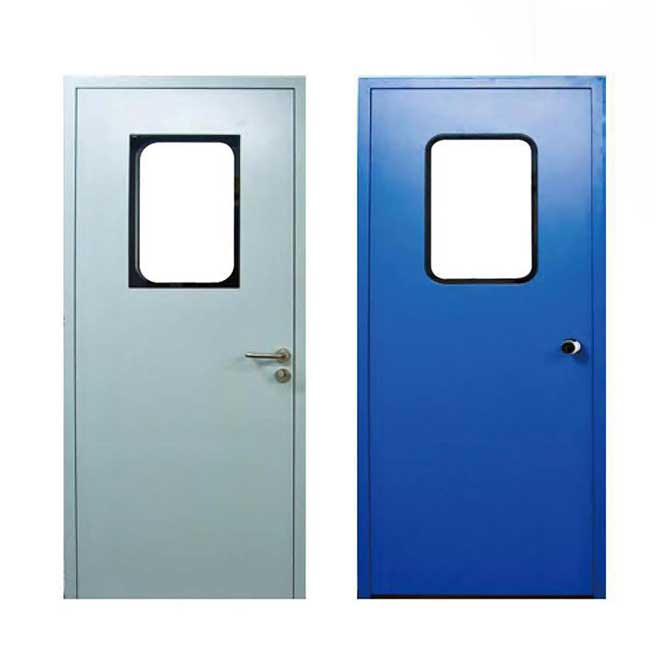

Clean Room Door

The clean room door is suitable for cleaning workshops, hospitals, pharmaceutical factories, food factories, etc. where there are clean requirements. The door body mold is integrally formed without gaps and corrosion resistance.
Quantity:
  • YUOU-CLR
  • YUOU

Technical data:


Door leaf

50mm thick,0.8mm G.I. Steel

Filling material:Honeycomb core

Seal:All-round EPDM weather seal  rubber

Door frame

Sheet thickness 1.2mm G.I.

Seal:All-round EPDM weather seal  rubber

Surface finish

Electric static powder coating with epoxy rich paint

Hinges

4*4*3mm stainless steel  hinge

Color

Any color in RAL color system

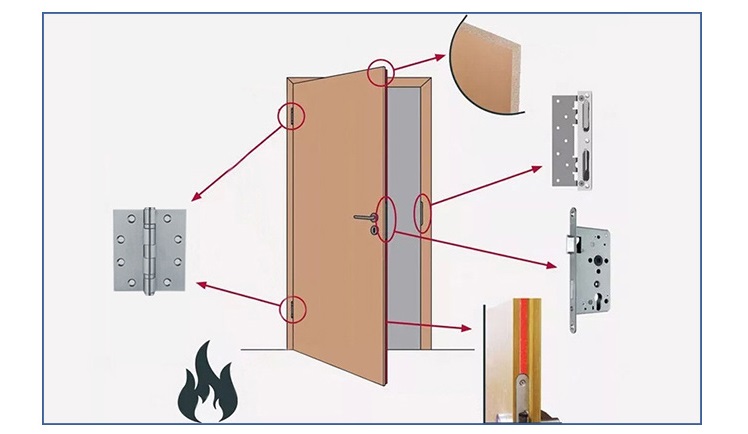

Structure diagram:

clean room door diagram

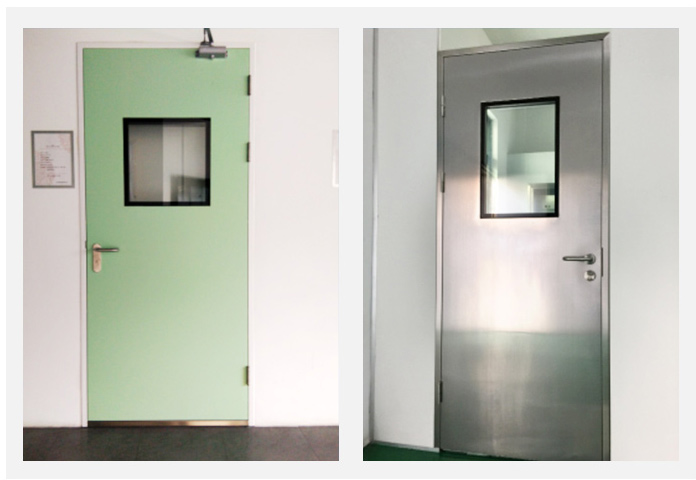

1.Door body:

A.The surface is electrostatically sprayed and can also be made of 304 stainless steel for better corrosion resistance.

B.The steel door frame and door panel are all made by joints. There is no seam, no solder joints and no dead ends.

clean room door

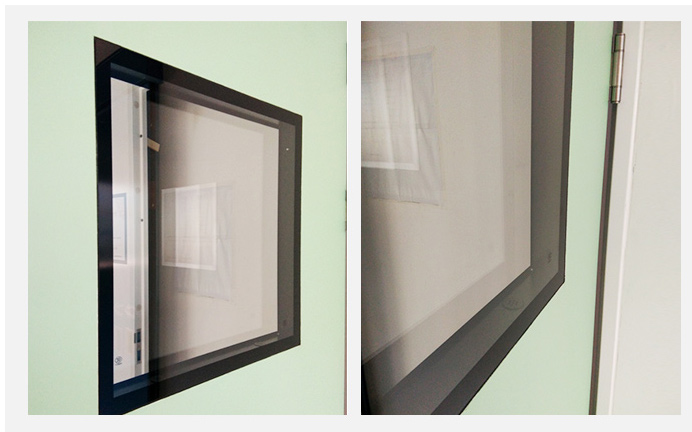

3.Vision window:Special double layer safety tempered glass. It is complete flush with the surface of door leaf, to avoid dust accumulation and make it easy for cleaning. Inside is filled with silica-gel desiccant, to avoid  condensation of moisture and dew on the panel.

clean room door window

4.Leveler handle lockset(304 stainless steel):

clean room door lock

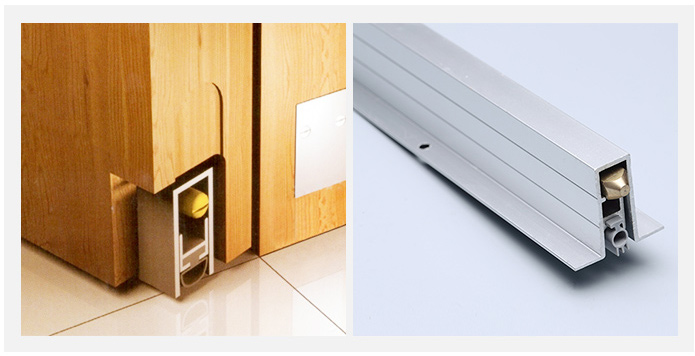

5.Bottom auto seal rubber:It will automatically retract up and down to eliminate the gap between door leaf and ground floor, to avoid dust entering room.

clean room door seal

6.Color:We can customize all RAL colors for you.

color

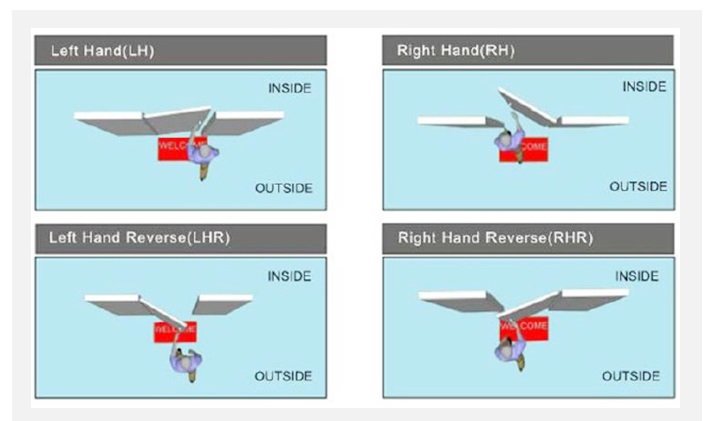

7.Opening direction:

opening direction
