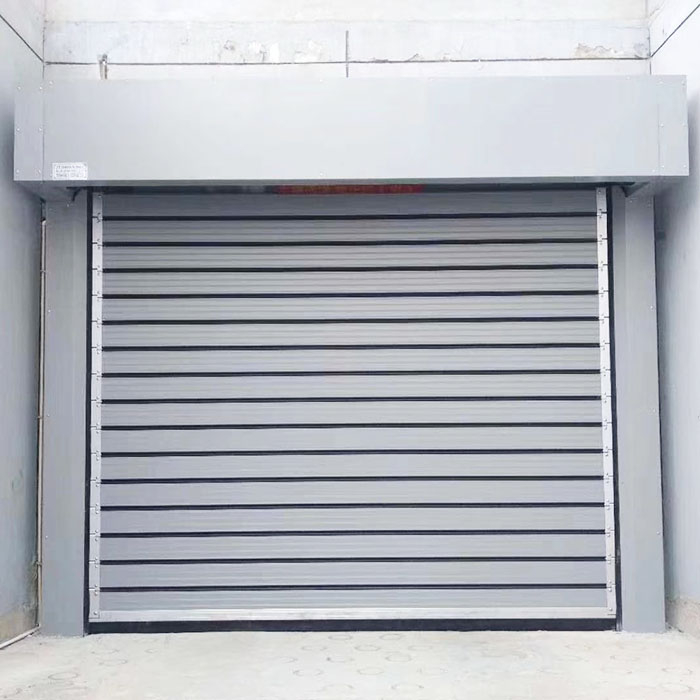

Alluminum Rapid Door

Aluminum alloy high speed door fits for areas with high demand of both security, high-strength, thermal insulation and high running speed.Widely used in underground garages,factory exterior, warehouse exterior.
Quantity:
  • YUOU-Spiral
  • YUOU

Technical Data:

Max dimension: 8000mm wide*8000mm high
Max opening Speed: 2.0m/s
Max closing speed: 1.0m/s
Wind resistance: Beaufort scale 12 (35m/s)
Power supply: 1-phase 220±10%V,50/60HZ,or 3-phase 380V±10%V,50/60HZ
Protection level of electric: IP55
Control system: Servo type
Driving system: Servo motor
Thermal conductivity factor: 1.9W/(㎡·K)
K-VALUE 0.4W/M2K
Sound insulation factor: R=25dB
Available colors of slat: Grey, Blue, White, Aluminum, Golden

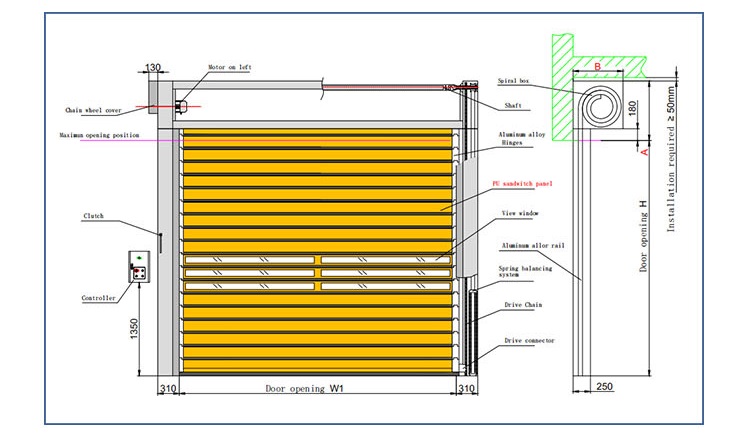

Structure diagram:

aluminum rapid door structure

1.Burglarproof and excellent thermal installation:

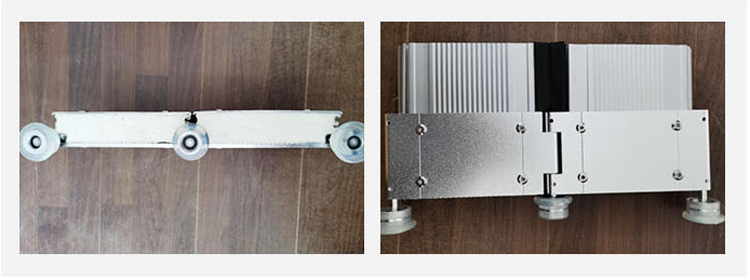

The aluminum alloy rapid door panel is made of a double-layered aluminum plate at a time, and the surface is fine pressed stripe, which is anodized and organic colored, and filled with intermediate polyurethane foam. The middle internal broken bridge design can increase the heat preservation effect, prevent the indoor and outdoor temperature loss, and save energy. The surface of the door panel is subjected to 5 layers of organic coloring treatment, which greatly improves the corrosion resistance.

aluminum rapid door panel

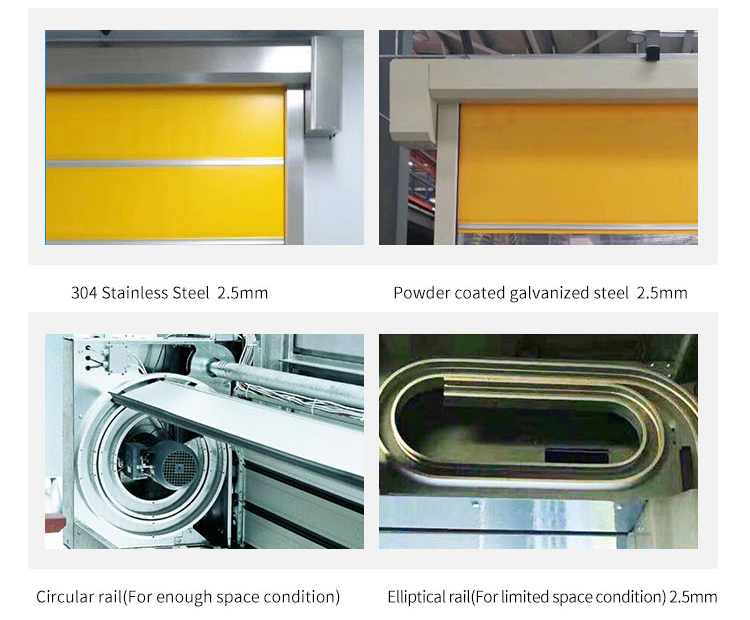

2.Frame and rails:304 Stainless steel or Powder coated galvanized steel frame.Circular rail or Elliptical rail.

aluminum rapid door frame and rail

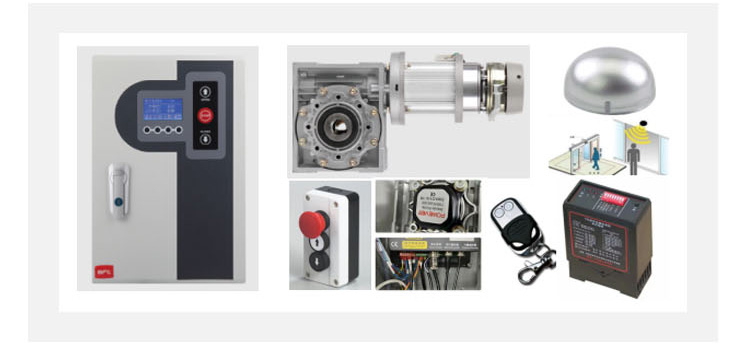

3.Mortor and controller: Italy servo technology motor,which is more stable and quicker response.Controller with English interface,very easy to use.Besides,absolute encoder+inbuilt incremental encoder ensure accurate limit and few maintenance.

servo motor and controller

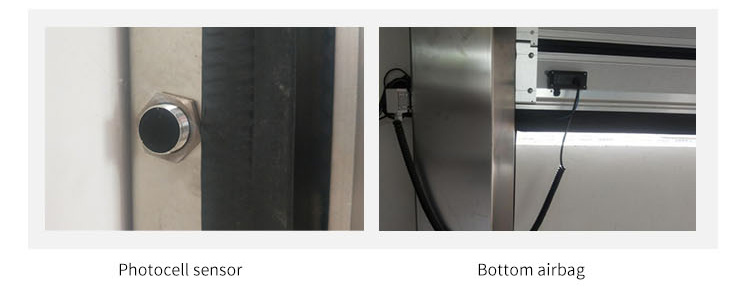

4.Safety devices:Photocell sensor and bottom airbag.

photocell sensor and airbag

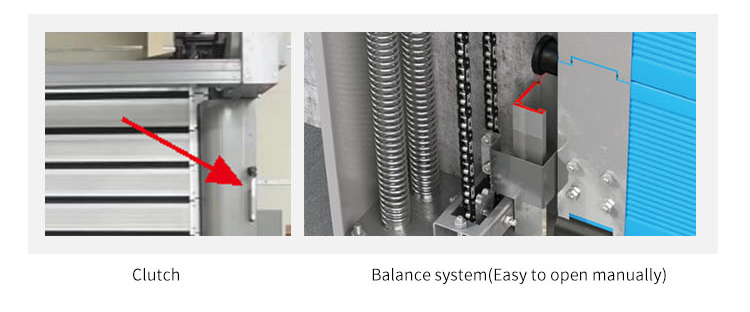

5.Emergency device:The spring balance system ensures that in the event of a power failure, the clutch is released and the door can be easily opened manually.

clutch and spring system

6.Opening methods:

opening methods

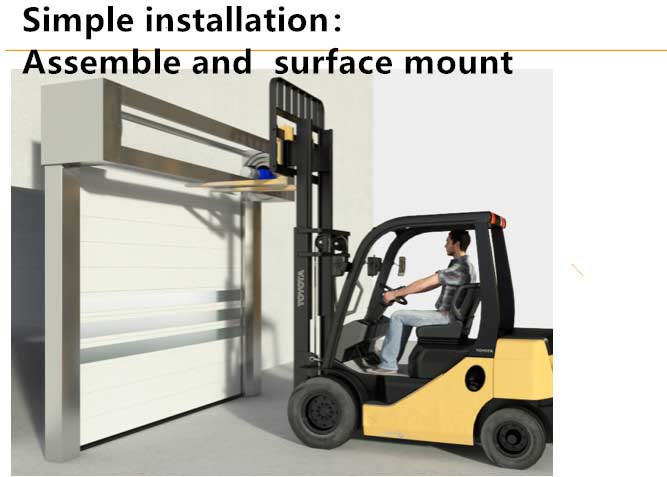

7.Installation:We will provide installation guiding service.

   Aluminum Rapid Door Installation
